品牌：SunKun(三昆)

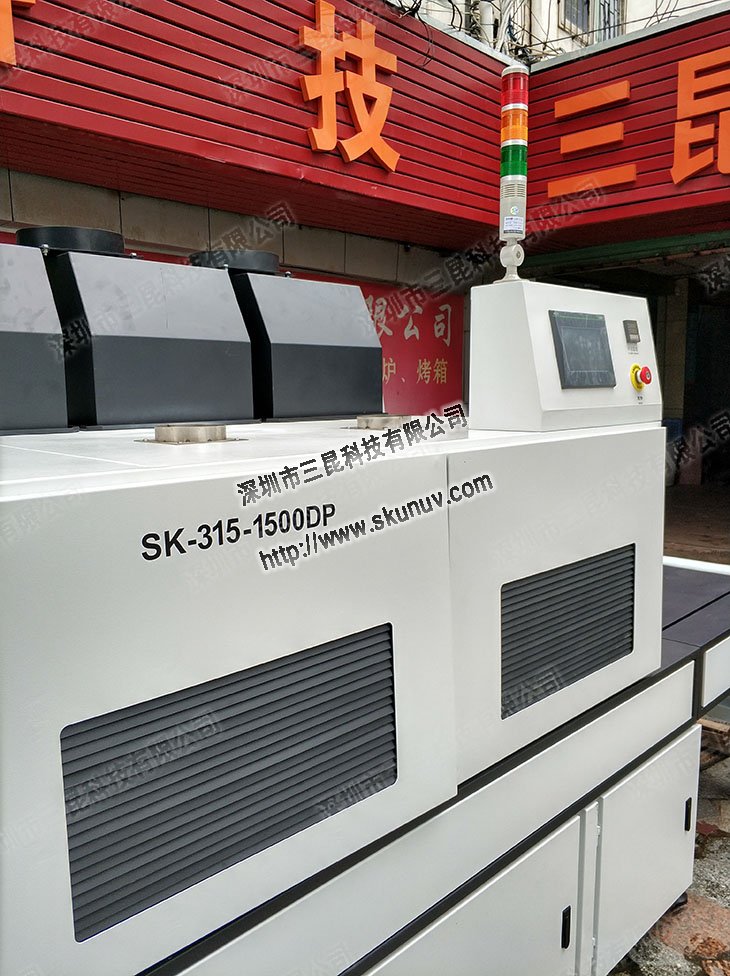

型號：SK-315-1500DP

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生)
1753480168
⒉業務咨詢：13913507139(黃永貴)
2851085006



⒈市場部：13510246266(黃總經理)
289604232

技術參數：
1.UV燈功率：12kw*3支（UV鹵素?zé)簦?br /> 2.UV燈總長：1650mm.弧長：1550mm
3.W波段主波峰：365mn.385mn
4.UV燈累時器配置
5.強弱光強調節：20%～100%（無級調節）
6.鍍金燈箱安裝光學反射器和光學濾光鏡片
7.UV燈箱高低自動升降
8.采用上.下排風系統
9.輸送材料：特氟龍網帶
10.輸送寬度：1500mm
11.輸送速度：O～lOm/min
12.入口高度：lOOmm
13.電源：380VAC 50HZ

Technical Parameters:
1.UV lamp power: 12kw*3 (UV halogen lamp)
2. UV lamp total length: 1650mm. Arc length: 1550mm
3.W band main peak: 365mn.385mn
4.UV lamp chronograph configuration
5. Strong and weak light intensity adjustment: 20% ~ 100% (stepless adjustment)
6. Gold-plated light box with optical reflector and optical filter lens
7.UV light box high and low automatic lifting
8. Adopt upper and lower exhaust system
9. Transport material: Teflon mesh belt
10. Delivery width: 1500mm
11. conveying speed: O ~ lOm / min
12. Entrance height: lOOmm
13. Power: 380VAC 50HZ

主要用途：
1．此設備是我司為滿足TP行業的生產需要而研發的一款專用低溫機型。主要特點為低溫、高效、潔凈
,主要用于ITO膜、玻璃等材質產品表面的油墨、可剝膠、水膠固化等制程。

2．適用于電子、電器、電池、塑膠、食品、紙品、車輛、金屬、化學、建材、研究所、檢驗檢疫局、大學等行業單位。

The main purpose:
1. This equipment is a special low-temperature model developed by our company to meet the production needs of the TP industry. The main features are low temperature, high efficiency and cleanliness.
It is mainly used for the process of ink, peelable glue and water gel curing on the surface of ITO film, glass and other materials.

2. Applicable to electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemicals, building materials, research institutes, inspection and quarantine bureaus, universities and other industrial units.
